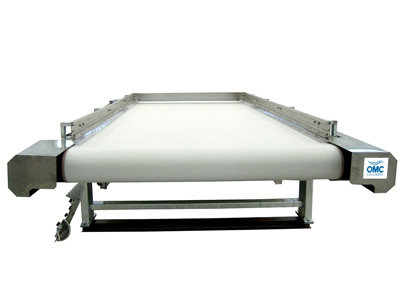

  • 重力台

    GRAVITY TABLE

    重力による水分除去用の非常に効果的な装置。
    最低コストおよび最低限の洗浄水消費での操作が可能。
    スラッジはポリマーの使用により凝集され、ベルト上に置かれます。除去された水分は重力ベルトから排水されます。
    シンプルなプロセスにもかかわらずスラッジ容積の大幅な減少は印象的です。
    最大限の性能かつ、最小限のメンテナンスを実現するための機能がいくつか含まれています(交換可能なPlow Shoesと変速ドライブモータ)。
    さまざまなスラッジ、流れ、固形物濃度の処理を行うための操作。

    Highly effective equipment for dewatering by gravity.
    Operation at a minimal cost, low volume of wash water consumed.
    Sludge is flocculated by the use of polymers, introduced on the belt and the released water is drained through the gravity belt.
    While the process is simple, the decrease in sludge volume is impressive.
    Some features are included to maximize performance and minimize maintenance (replaceable plow shoes and variable speed drive motor).
    Operation to process a wide range of sludge, flows and solid concentrations.

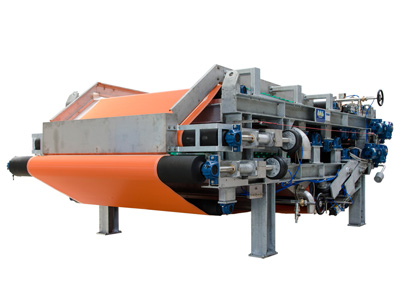

  • ベルトプレス

    BELT PRESS

    2本の浸透式ベルト間で積極的な圧縮を加えることで広範囲のスラッジから水分を除去するためにデザインされたダブルベルトの水分除去装置。
    3種類の水分除去ゾーン:重力ゾーン。高密度ポリエチレンバーで支えられた上部ベルトが含まれ、ここでほとんどの水分が重力により除去されます。
    くさびゾーン(中程度圧力セクション)では、上下のベルトが互いの方向に動いて近づき、装置の進行方向に向かって直径が小さくなる圧力ロールにより「S」字型を構成します。
    これによりスラッジにかかる圧力がだんだんと大きくなり、安定したスラッジの固まりが完成します。NIPゾーンでは2つの高圧ニップを使用し最終的なスラッジの固まりをより乾燥させることができます。

    高圧ゾーンを通過した固まりは、2枚のドクターブレードによりベルトから取り除かれます。
    2つの洗浄ステーションでベルトの洗浄が行われます。各ベルトに洗浄ステーションがあり、高圧ジェットノズルの付いたパイプが使用されます。2つの空圧システムによりベルトの張力調整と自動中央揃えが行われます。ベルトプレスに取り付けられた重力台には、カスケードが付いており、全段階で高濃度化されなかったスラッジから水分を除去します(乾燥固形物濃度は0.5~1.5%)。これにより、費用、設置場所について優位性を持つことができるとともに優れた水分分離パフォーマンスと容易なメンテナンスが可能となります。

    Double belt dewatering machine designed to dewater a wide range of sludge, by means of progressive compression between two permeable belts. 3 different draining zones: Gravity zone, consisting of the upper belt supported by high density polythene bars where most of the water is drained by gravity. Wedging zone (medium pressure section), where upper and lower belts approach each other and form a “S” configuration by means of pressure rolls with a decreasing diameter along the working direction of the machine so that pressure exerted on sludge gradually increases to produce a stabilized cake. NIP zone, consisting in 2 high pressure NIP that allows to reach higher performance of dryness in sludge final cake.

    The cake leaving the high pressure zone is removed from the belts by two doctor blades. The cleaning of the belts is performed by two washing stations, one for each belt, consisting of a pipe with high pressure jet nozzles. Two pneumatic systems provide the tensioning and the automatic centering of the belts. The Gravity Table installed on Belt Press is giving the Cascade, a solution allowing to dehydrate sludge that has not been previously thickened (dry solid concentration between 0,5-1,5%), with consequent advantages in terms of costs and installation space and also to assure high performance of separation and easy maintenance.
